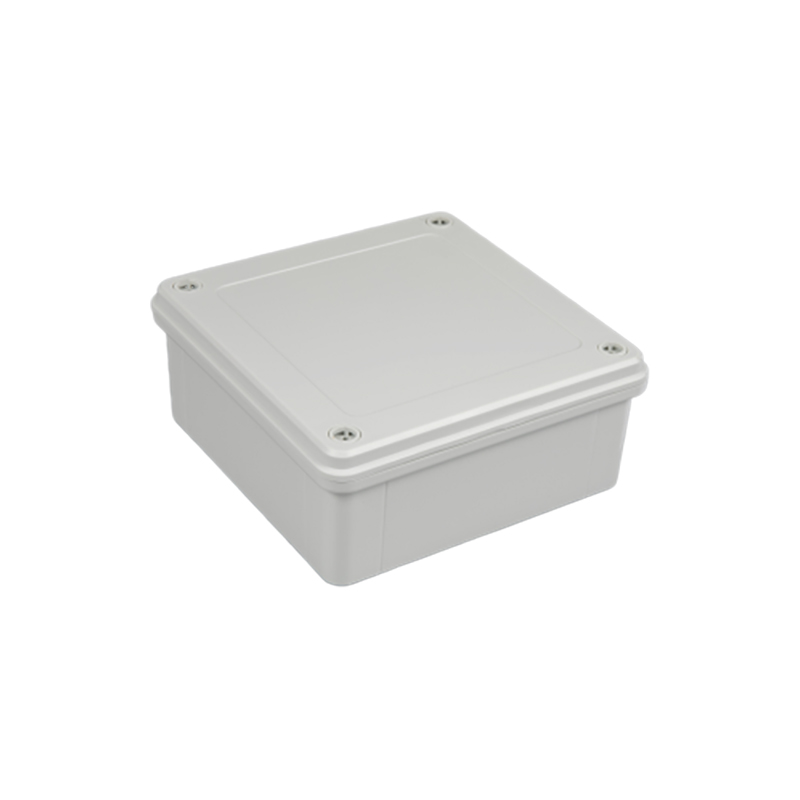

Plastic waterproof enclosure

Detailed introduction

Product description： 145x145x60mm

Protection level： IP65

Product description：

1. the average thickness of the box is 3mm, and the impact strength is ik07. There are two types of upper cover: transparent and opaque

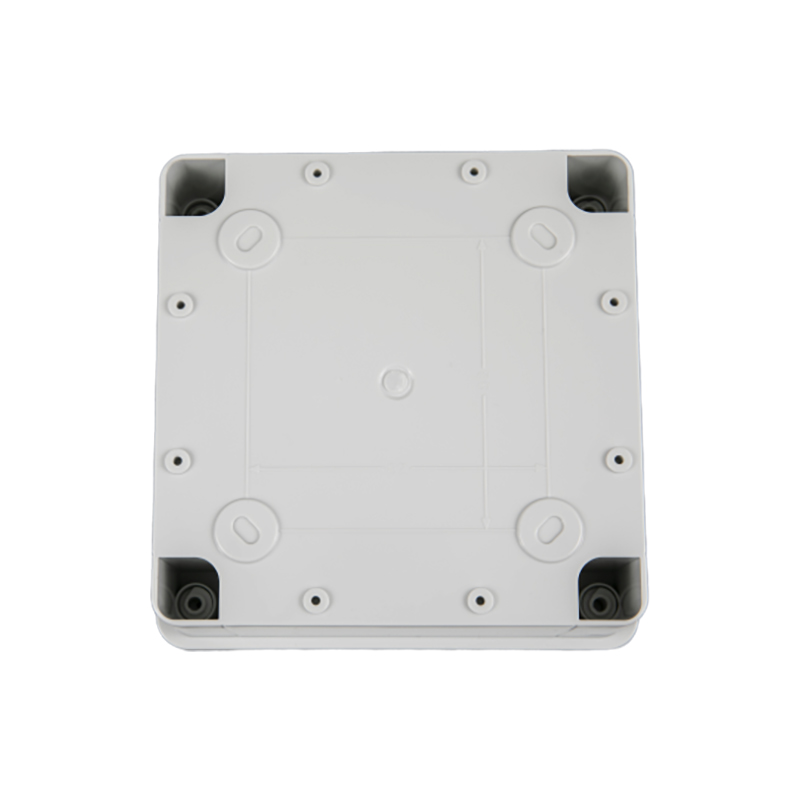

2. optional plastic hanging feet can be directly fixed to the wall through the mounting holes at the lower part of the box body

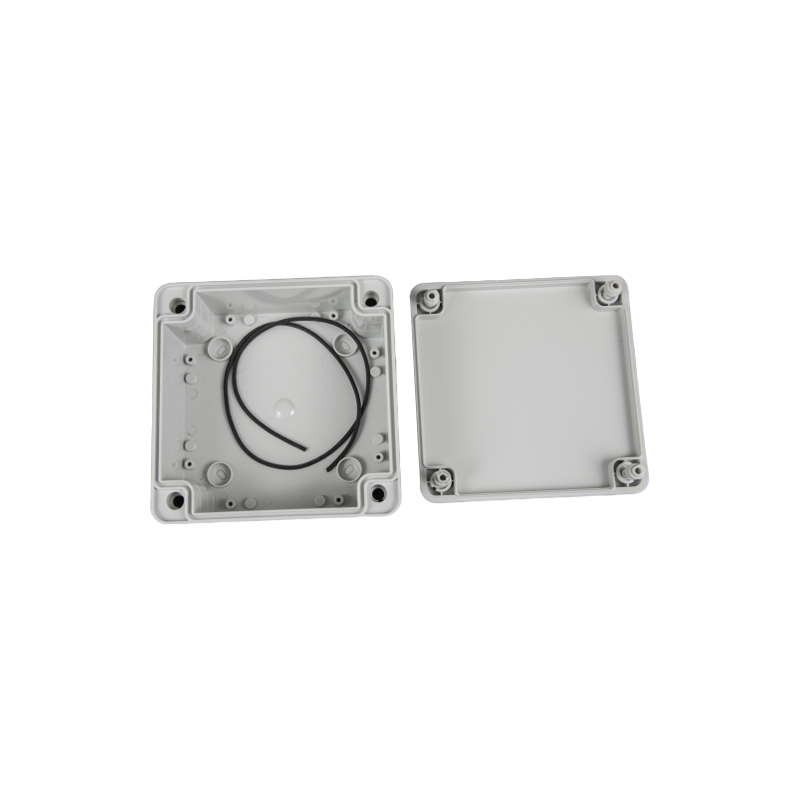

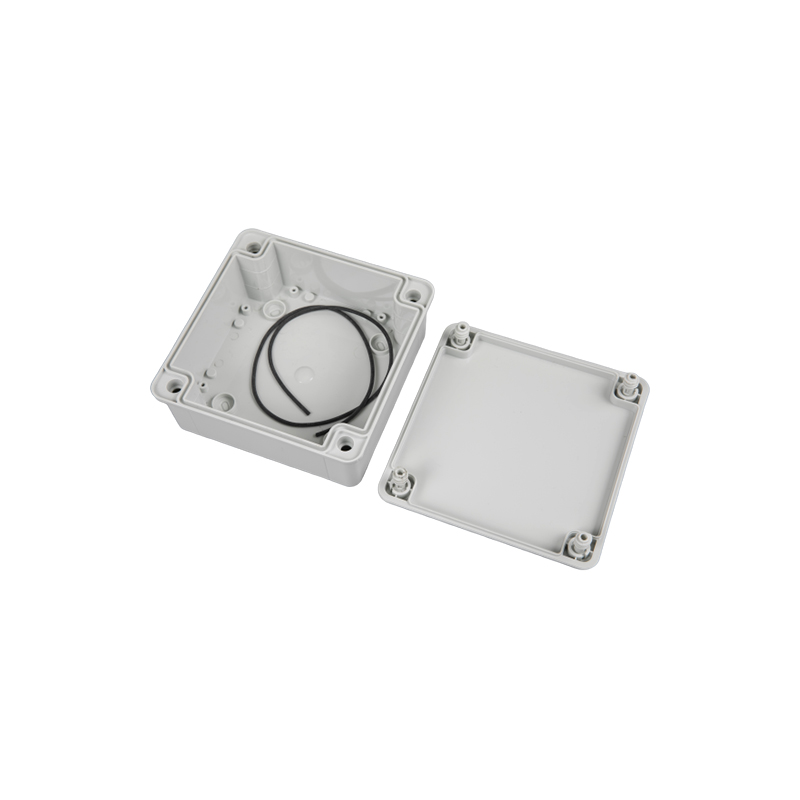

3. the box body and the cover are fixed with four stainless steel screws

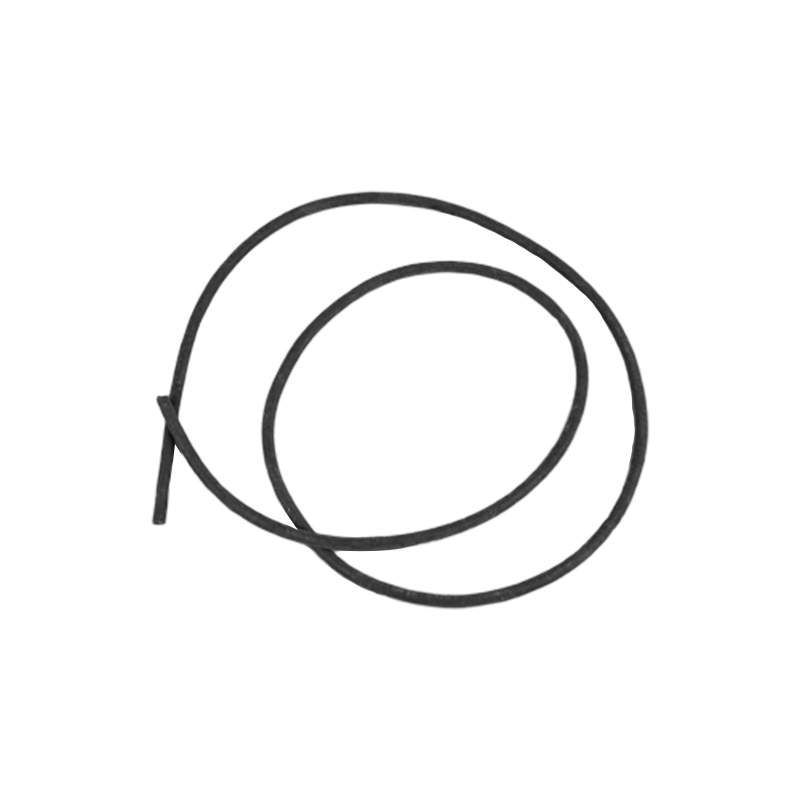

4. silicone rubber sealing strip

5. there is a boss for the installation of circuit board or DIN rail element inside

6. all models can be made transparent (model is marked with T)

Order description

—————————————————————————————————————————————————————————

The color of the product can be customized at will (color sample is required), but the order quantity is required

Plastic products can be replaced with transparent PC, flame retardant, anti-static and other special performance materials according to the requirements, but the order quantity is required

Most of the products can be modified according to the requirements, such as opening, adding and modifying PCB fixed column, etc. (mold modification fee is required)

The company's products are designed according to the standard protection level, but do not provide relevant protection, explosion-proof level certificate
